the Stirgiform PT2399 delay…

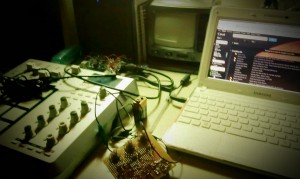

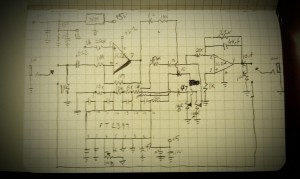

two days worth of soldering and layout. it’s a combination of the Magnus Modulus and Rebote delay schematics. i couldn’t get the mixing circuit to really work from the Rebote schematic (an older version) without some serious distortion, so i just kind of reworked it on my own. here’s the schematic. i wouldn’t commit to it 100%, but it’s a start. tomorrow i’ll see if it level from bypass to effect works.
